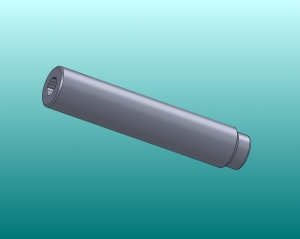

RESS-3340-60

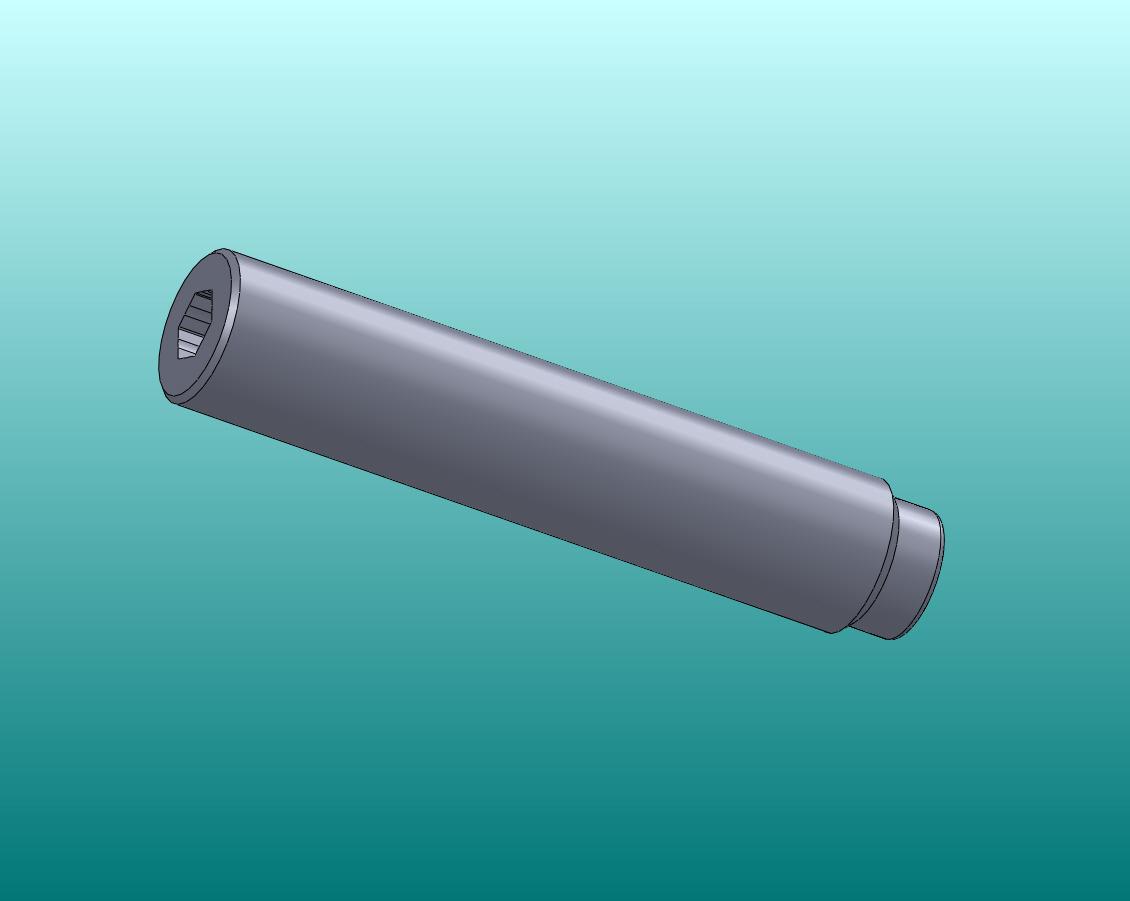

This is a high load, fine 40 tpi thread, radius ended set screw made of 304 Stainless Steel. The radius of the tip is 20 inches. When this screw is used with a Hitek Hardware, Inc. matching collet, and the load applied is against a relatively hard surface, neither the thread or the tip of the screw will fail nor will the tip permanently be deformed (past its yield limit) with a 1000 pound static load. A static load of 3000 pounds can be applied to an aluminum surface without tip failure, however the aluminum will be permanently dimpled. It is advised to use a lubricant on the thread. We use white lithium grease.

Download STEP and PDF Files for this product
STEP FILE DOWNLOAD	DRAWING PDF DOWNLOAD
