Precision 3/4-40 Locking Collet
Hover over image to zoom
More imagesClick to enlarge |
Price: $350.00
Product ID : PS750-40-LC
E-mail to a friend
Please complete this form.
All fields are required. Purchase |
Description

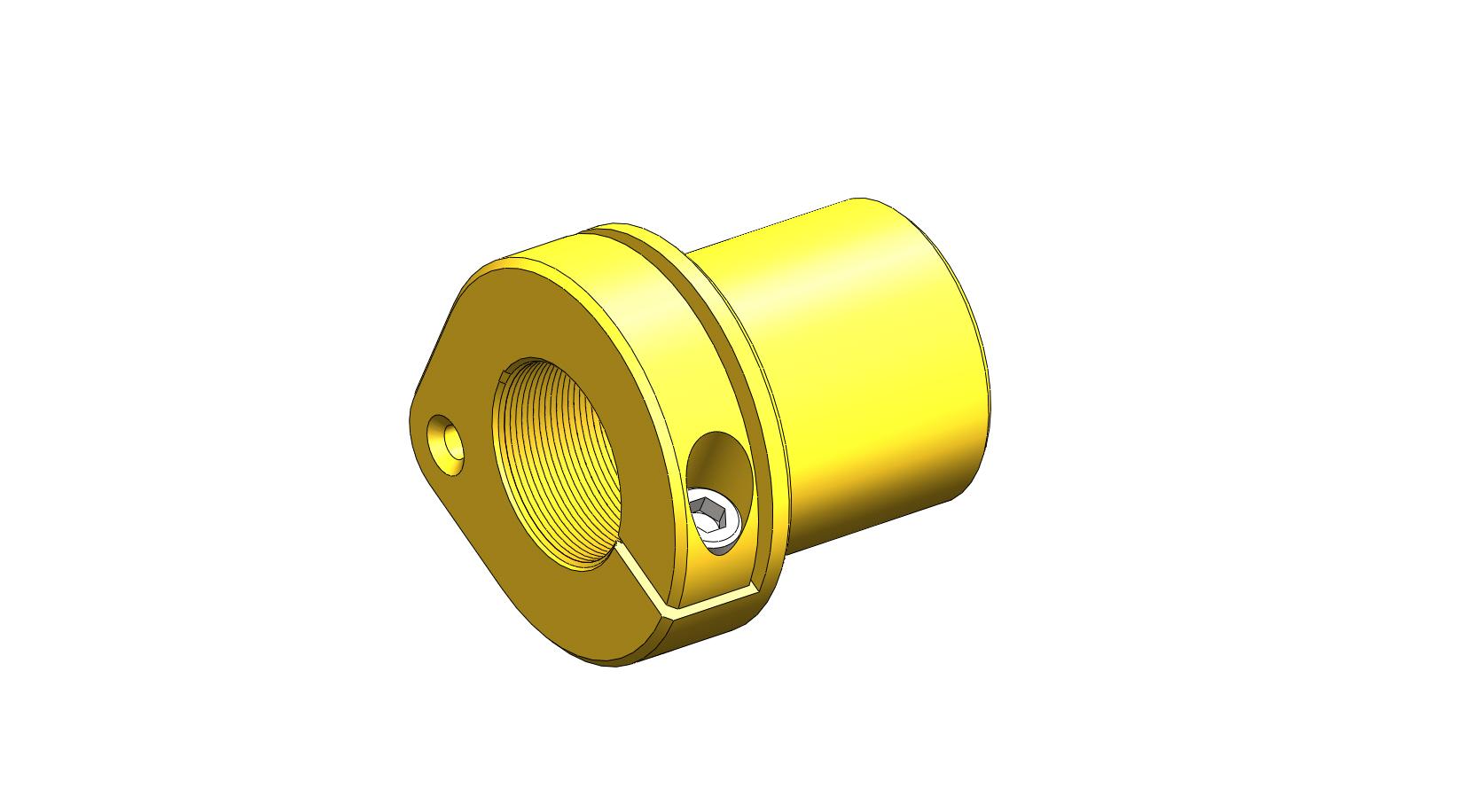

This collet is for use with 3/4-40tpi (RESS3440-32) Radius ended set screw. It is designed for heavy load, up to 3000 pound axial loads. The load must be applied against the flange. The collet may be bonded in or secured with the flat head screw as shown on the flange. Do not press this collet into place as it will distort the precision thread.
Download STEP and PDF Files
|
|
|
STEP FILE DOWNLOAD
|

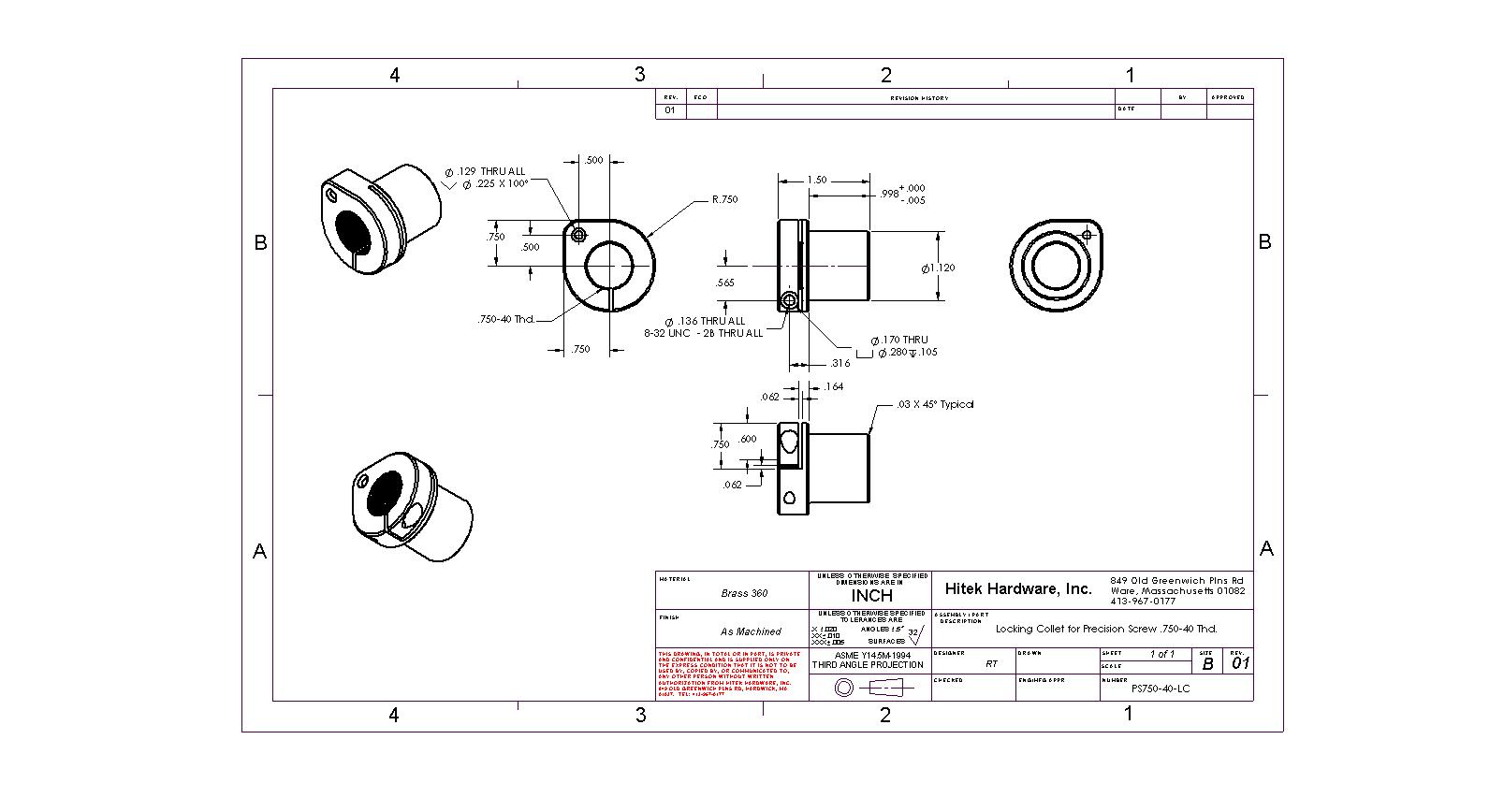

DRAWING PDF DOWNLOAD
|
